Description
Last update: 12.2023
Size: 235 mb
Region: All region
Languages Document: English
OS: Win 10, Win 8, Win 7, Win Vista
Installation: Select an option
Version: 4
High speed download link
Instant download after payment, no waiting

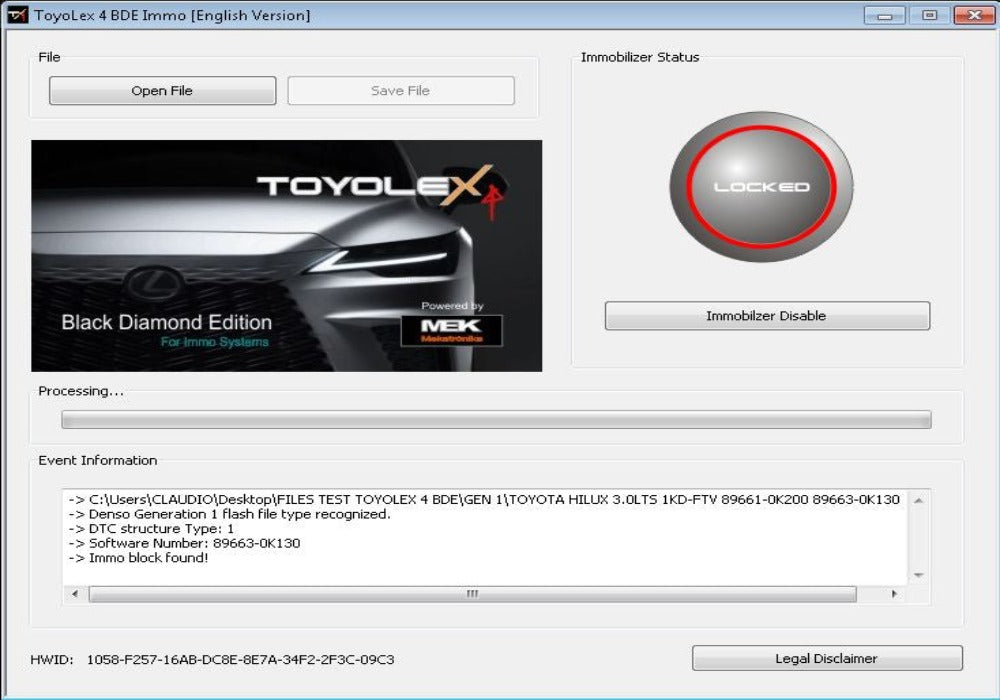

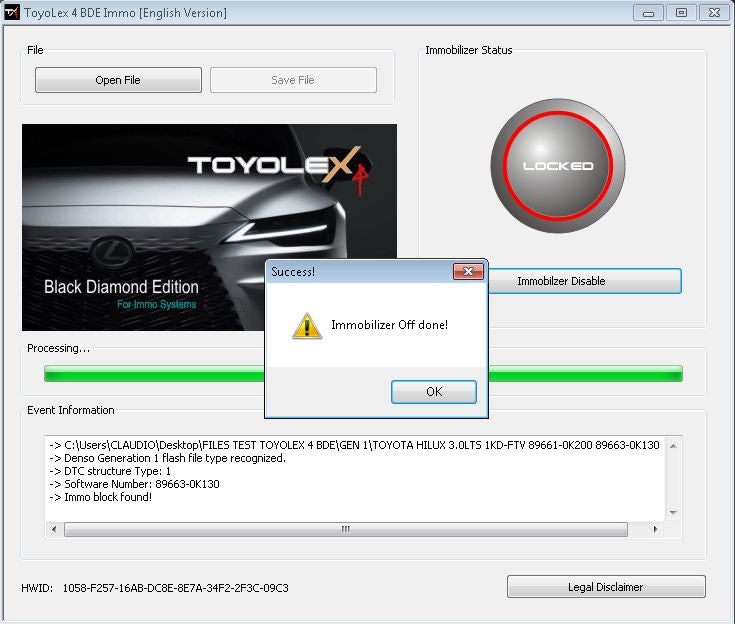

ToyoLex 4 Black Diamond Edition, the first application on the world designed exclusively for DISABLE IMMOBILIZER SYSTEM TROUGH FLASH FILE on Toyota, Lexus and Hino (N04 engines). It has the following characteristics:
- Supports Generation 1, 2 and 3 files from Toyota and Lexus Denso ECUs with the below MCU cores:
- Denso Generation 3: R7F701202 and R7F701216 .
- Denso Generation 2: D76F0199GD, D76F0196F1, D76F0219F1.
- Denso Generation 1: NEC 76F00XX series (Currently not support old Denso core 76F0004GD mask found on some 2001-2004 MY cars)
- Exclusive algorithm that recognizes immobilizer block into Flash file, doing the disable task only in such memory and with only one click.
- Automatic special function that do erasing of DTCs togheter with Immobilizer disable function.
- By doing the process only in Flash memory, most immobilizer disable tasks can be performed through the OBD II port without the need to open the ECU!
- Not more cut / uninstall any wire or module after do Immo off, simply program the file generated by ToyoLex 4 BDE and start the engine!
- Support and process files from ALL Denso ECUs for DIESEL and GASOLINE engines.
- Work with ZERO risk on Denso Generation 3 ECUs.
- Allow binary files from any Flashing tool of the market that support Denso ECUs for Toyota and Lexus cars.
- Tested on systems with key blade and START-STOP systems.
- NOT support ECUs for Hybrid Vehicles (1) and locked Gen 3 ECU by wrong programming.
- Not tested on Factory virgin ECUs (New not installed yet ECUs).
(1) This will be noticed by the application when opening a Hybrid Vehicle file.
